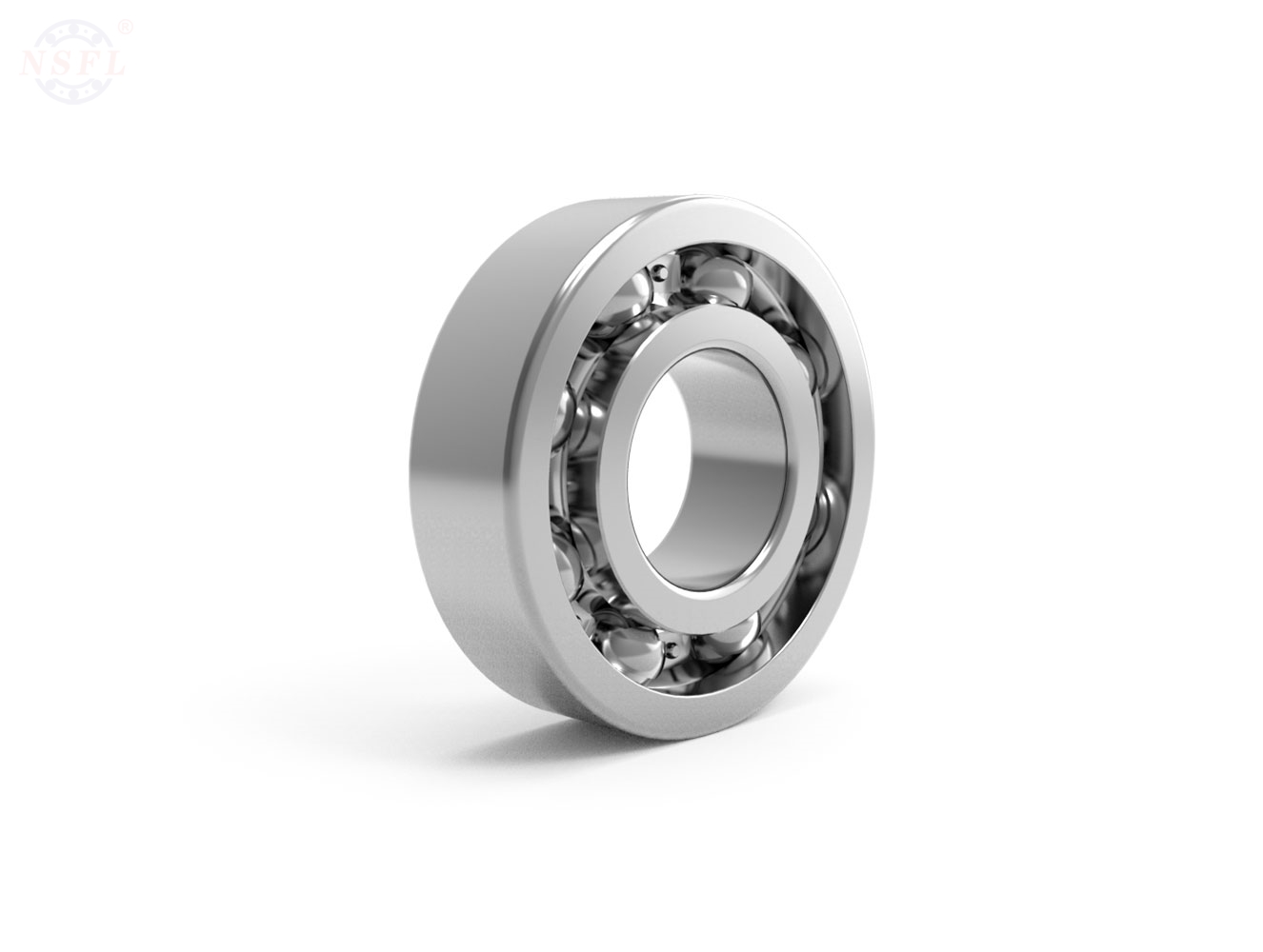

Deep groove ball bearing 6828

Model:6828

Brand:

Deep groove ball bearing 6828 d=140、D=175、B=18,For more information, please contact the NSFL, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13211157555

nsflbearing@gmail.com

Attribute

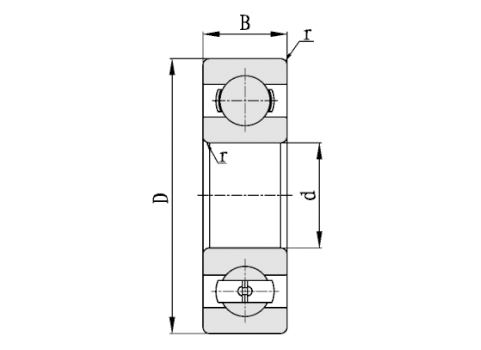

Technical Drawing
Param Print

model

model 6828

key dimension (mm)

d 140
D 175
B 18
r min. 1.1

specified load (N)

Cr 38.2
Cor 44.4

Limit of rotation speed (rpm)

Grease 3400
Oil 4000

Shoulder retaining size(mm)

da min. 146.5
Da max. 168.5
ra max. 1

weight (kg)

Approx 1
