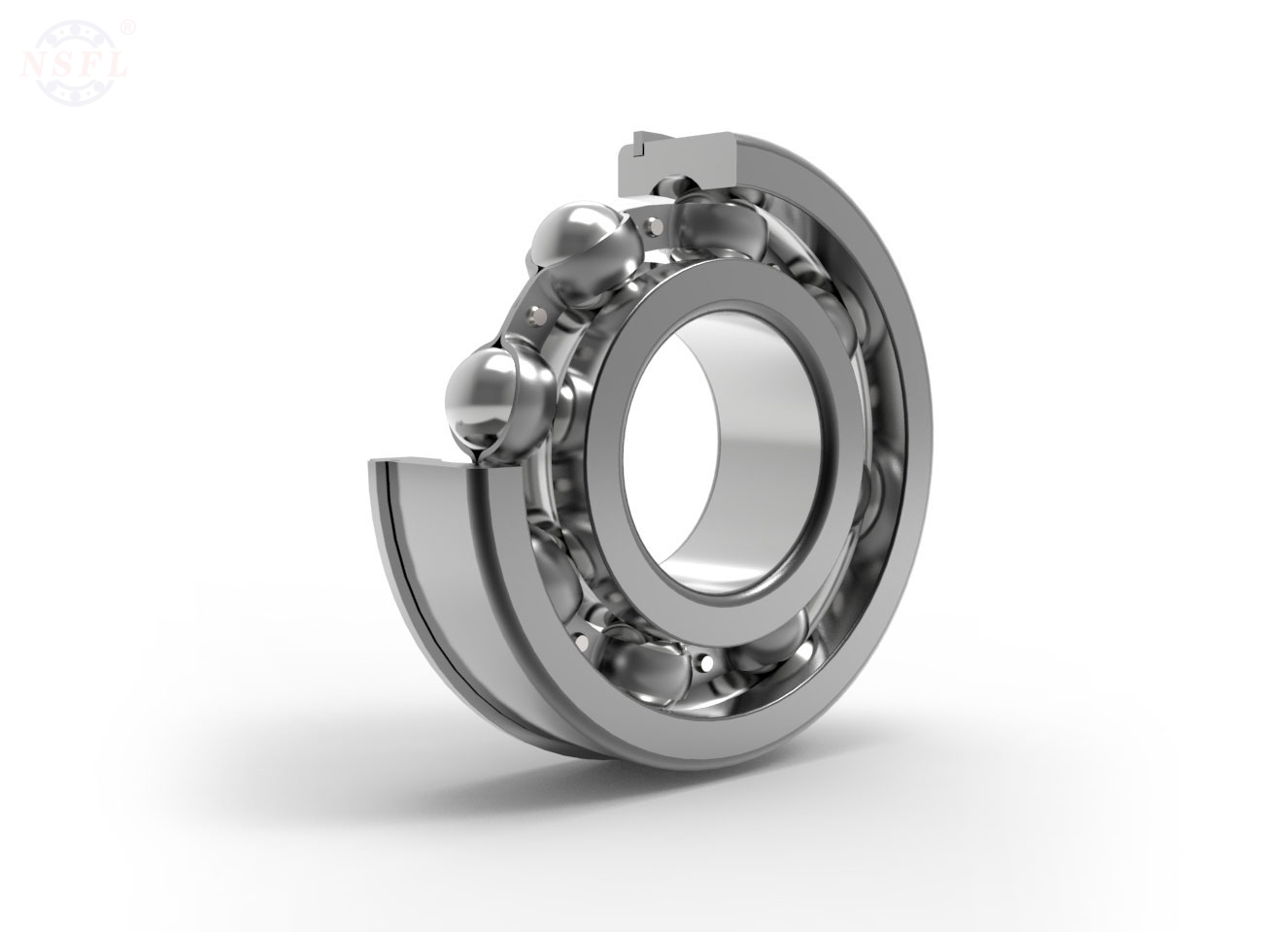

Deep groove ball bearing 6222N

Model:6222N

Brand:

Deep groove ball bearing 6222N d=110、D=200、B=38,For more information, please contact the NSFL, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13211157555

nsflbearing@gmail.com

Attribute

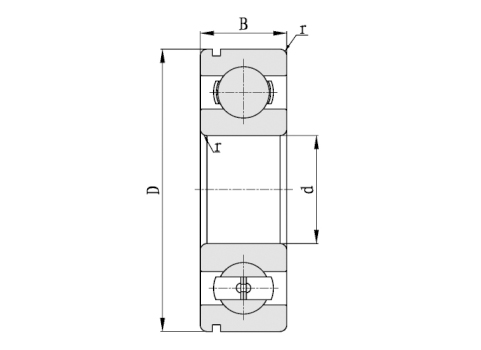

Technical Drawing
Param Print

model

With stop slot 6222N
With a stop ring 6222NR

key dimension (mm)

d 110
D 200
B 38
r min. 2.1
r1 min. 0.5

specified load (KN)

Cr 144
Cor 117

Limit of rotation speed (rpm)

Grease 3100
Oil 3700

Stop Sway Size(mm)

D1 max. 193.65
a max. 5.69
b ±0.15 3.65
r0 max. 0.6

Stop ring size(mm)

D2 max. 212.9
f ±0.05 3.05

Shoulder retaining size (mm)

da min. 121
Da max. 189
Dx min. 215
Cy max. 8.44
ra max. 2
rb max. 0.5

weight (kg)

Approx 4.36
