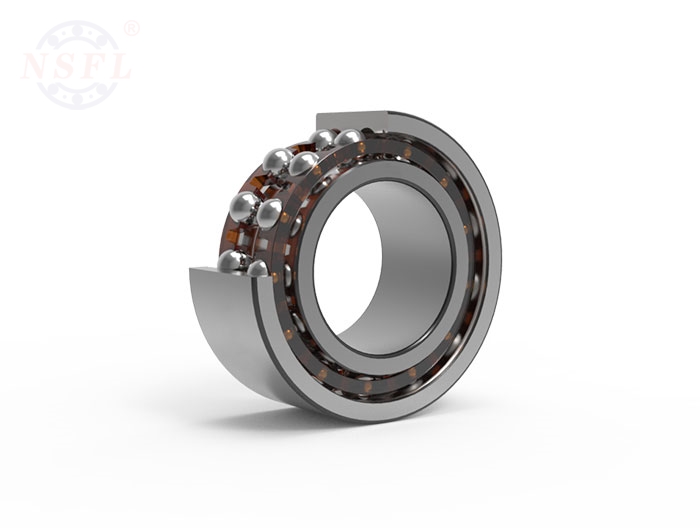

Angular contact ball bearing 3314

Model:3314

Brand:

Angular contact ball bearing 3314 d=70、D=150、B=63.5,For more information, please contact the NSFL, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13211157555

nsflbearing@gmail.com

Attribute

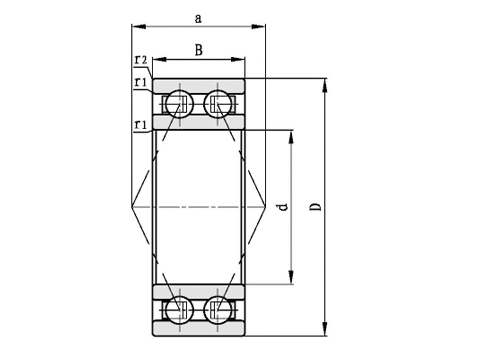

Technical Drawing
Param Print

model

model 3314

key dimension (mm)

d 70
D 150
B 63.5
r1、2min 2.1

specified load (KN)

Cr 147
Cor 173

Limit of rotation speed (rpm)

Grease 2800
Oil 3800

Other dimensions

d1≈ 99.2
D1≈ 131

Distance of the bearing load center position(mm)

a 101

installation size (mm)

da min. 82
Da max. 138
ra max. 2

weight (kg)

Approx 5.05
