model

model	3210A-ZZ
Limit of rotation speed (rpm)	4800

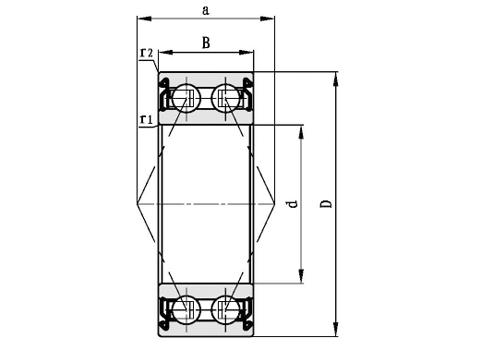

key dimension (mm)

d	50
D	90
B	30.2
r1、2min	1.1

specified load (KN)

Cr	47.5
Cor	39

Other dimensions

d1≈	57.8
D1≈	82.1

Distance of the bearing load center position(mm)

a	56

installation size (mm)

da min.	57
da max	57.5
Da max	83
ra max	1

weight (kg)

Approx	0.66
