model

model	QJ215

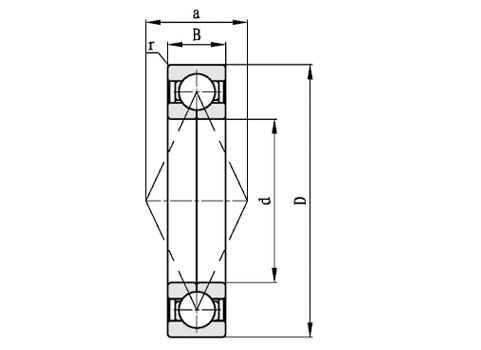

key dimension (mm)

d	75
D	130
B	25
r min.	1.5

specified load (KN)

Cr	108
Cor	108

Limit of rotation speed (rpm)

Grease	3900
Oil	5300

Distance of the bearing load center position(mm)

a	71.8

installation size (mm)

da min.	83.5
Da max.	121.5
ra max.	1.5

weight (kg)

Approx	1.47
