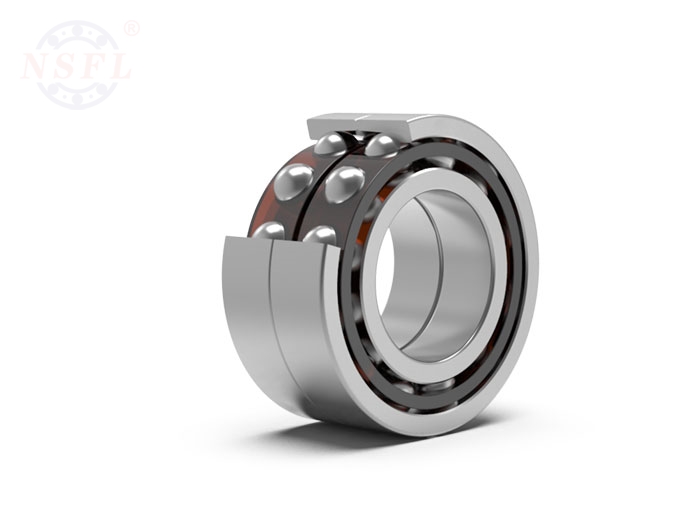

Angular contact ball bearing 7224CDB

Model:7224CDB

Brand:

Angular contact ball bearing 7224CDB d=120、D=215、B=80,For more information, please contact the NSFL, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13211157555

nsflbearing@gmail.com

Attribute

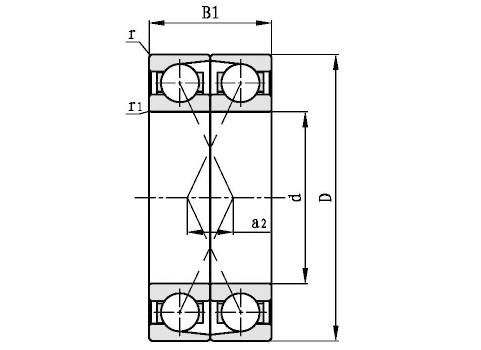

Technical Drawing
Param Print

model

back-to-back DB 7224CDB
facing each other DF 7224CDF
series connection DT 7224CDT

key dimension (mm)

d 120
D 215
B1 80
r min. 2.1
r1 min. 1.1

Rated load(kN) stamping holder

Cr 308
Cor 359

Rated load(kN) solid cage

Cr 0
Cor 3800

Limit of rotation speed (rpm)

Grease 5000
Oil 85

Distance of the bearing load center position(mm)

a1 5
a2 132

installation size (mm)

da min. 0
db min. 203
Da max. 208
DB max. 2
ra max. 1
rb max. 11

weight (kg)

Approx
