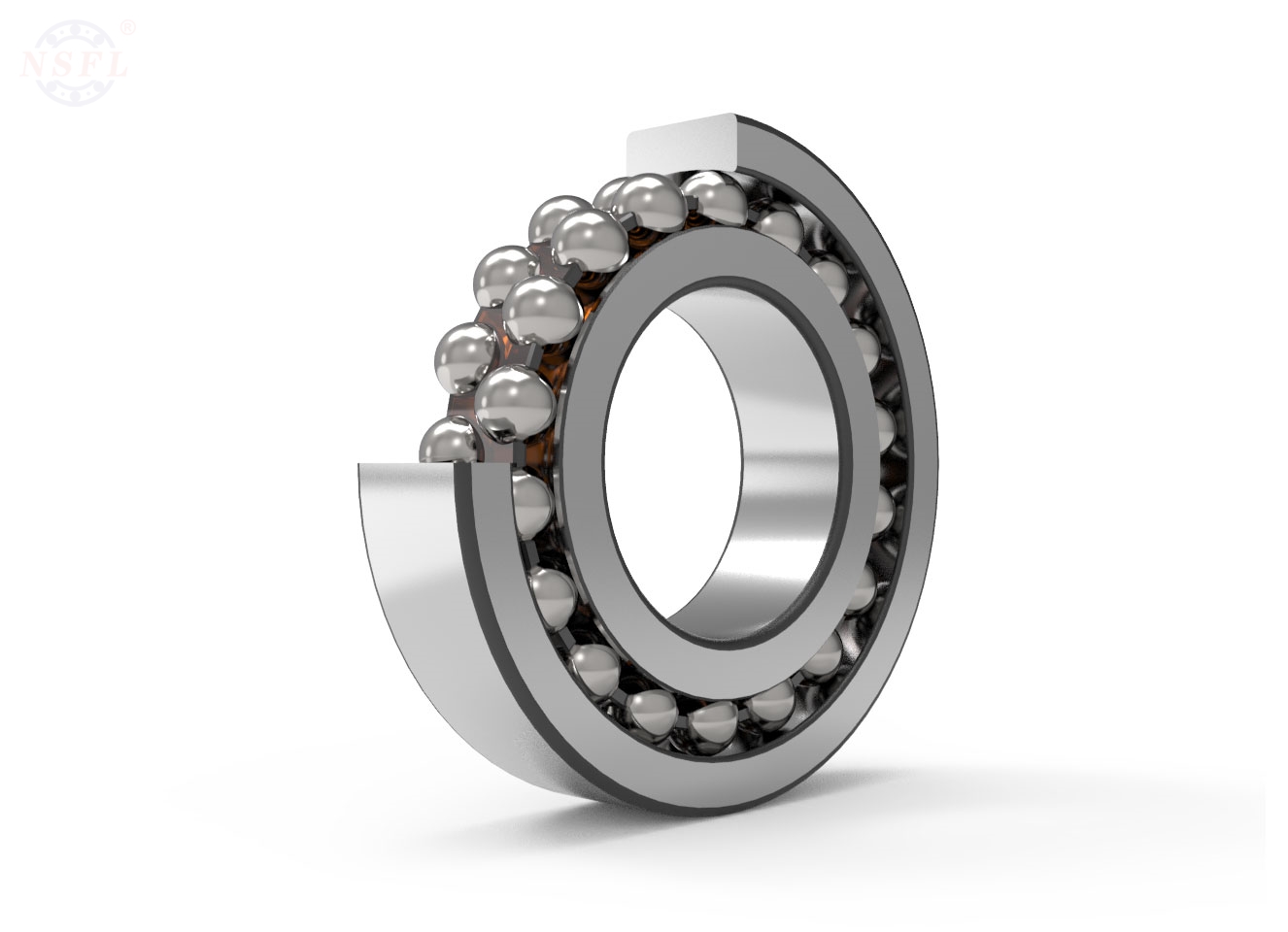

model

Column hole	2320
conical bore	2320K

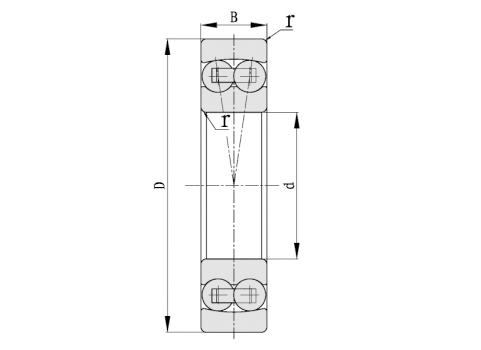

key dimension (mm)

d	100
B	215
D	73
r min.	3

specified load (KN)

Cr	183
Cor	73.4

Limit of rotation speed (rpm)

Oil	3400

Shoulder retaining size (mm)

da min.	113
Da max.	202
ra max.	2.5

Weight(kg) of the Approx

Column hole	12.4
conical bore	12.1
