model

Column hole	2212-2RS
conical bore	2212-2RS K

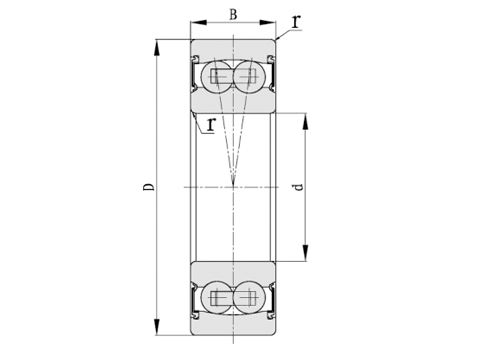

key dimension (mm)

d	60
B	110
D	28
r min.	1.5

specified load (KN)

Cr	31.2
Cor	12.2

Limit of rotation speed (rpm)

Grease	3800

Shoulder retaining size (mm)

da min	69
da max	73
Da max	101
ra max	1.5

Weight(kg) of the Approx

Approx	1.09
