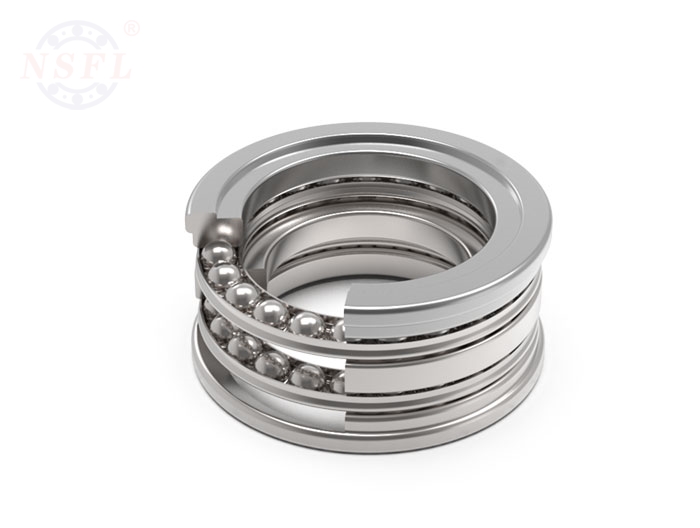

Thrust ball bearing 54208

Model:54208

Brand:

Thrust ball bearing 54208 d=30、D=68、B=9,For more information, please contact the NSFL, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13211157555

nsflbearing@gmail.com

Attribute

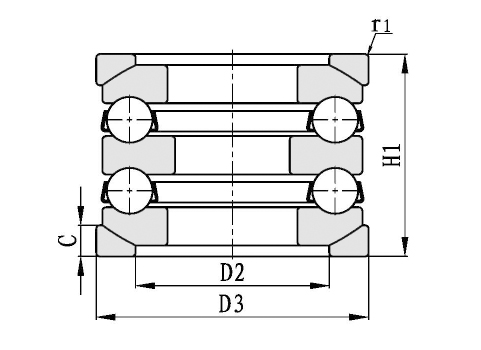

Technical Drawing
Param Print

model

bearing 54208
race U208

key dimension (mm)

d 30
D 68
H 38.6
r1,2min 1
r3,4min 0.6
D1 42
D2 55
D3 72
B 9
C 7
H1 44
R 56
S 25

specified load (KN)

Cr 46.8
Cor 98

Limit of rotation speed (rpm)

Grease 2800
Oil 3800

Shoulder retaining size (mm)

da max 40
da max 55
ra max 1
rb max 0.6

Weight(kg) of the Approx

Approx 0.56
race 0.07
