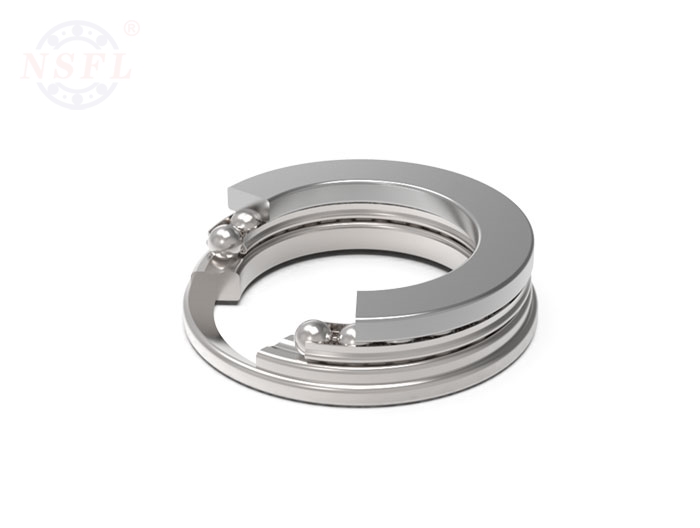

Thrust ball bearing 53307

Model:53307

Brand:

Thrust ball bearing 53307 d=35、D=68、B=,For more information, please contact the NSFL, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13211157555

nsflbearing@gmail.com

Attribute

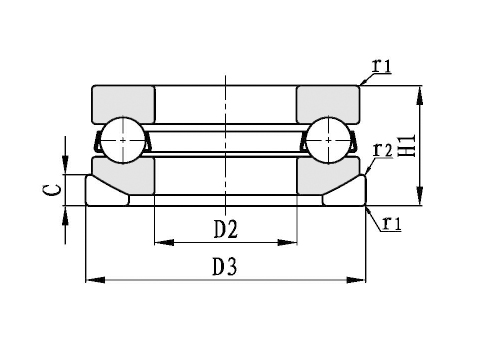

Technical Drawing
Param Print

model

bearing 53307
race U307

key dimension (mm)

d 35
D 68
H 25.6
r1,2min 1
d1 68
D1 37
D2 52
D3 72
C 7.5
H1 28
R 56
S 24

specified load (KN)

Cr 49.4
Cor 88

Limit of rotation speed (rpm)

Grease 2400
Oil 3400

Shoulder retaining size (mm)

da min 55
Da max 52
ra max 1

Weight(kg) of the Approx

Approx 0.38
race 0.084
